Military Bandpass Filtering Applications & Uses
In the realm of radio frequency engineering, achieving the perfect balance between signal clarity and interference rejection is a perpetual challenge.
At the very core of this obstacle lies a bandpass filter, an unassuming yet incredibly potent component. You are likely well-acquainted with their function, but understanding their real-world applications, particularly within the high-stakes arena of military technology, can offer fascinating insights into their potential.
Bandpass filters are one type of RF filter that allows a specific range of frequencies through. Bandpass filtering is used for many applications in radio communications, space or satellite communications, and military applications.
This article will focus on how the U.S. military uses bandpass filters in their general applications and technology. Military technology has different goals and usage than commercial applications. From the subtleties of radar systems to the intricacies of electronic warfare, satellite, and wireless communications, we will navigate the complex landscape of military RF technology.
Let’s start with one of the most well-known applications of bandpass filtering: Radars.
Application #1: Military Radars
In military radar systems, bandpass filtering is used to eliminate unwanted frequencies and noise. Radars emit signals at a particular frequency and receive signals reflected back from the target.
It's vital that only the desired frequencies are processed to ensure accurate information about a target's location, speed, and direction.
The bandpass filters allow the desired frequency band (matching the frequency of the emitted signals) to pass while rejecting other frequencies. This leads to a clearer, more precise radar image.
These types of bandpass filters are very niche to the military world as they filter out very unique frequencies. This RF technology must also meet specific system requirements.
Application #2: Electronic Warfare Tools
Microwave subsystems and filters are used in various EW systems, including electronic countermeasures and signals intelligence (SIGINT).
For example, electronic warfare usually involves using the electromagnetic spectrum to intercept, block, and counter foreign communications. Bandpass filters play a crucial role in these operations.
A bandpass filter might be used to isolate a particular frequency band on which foreign communications are known to occur, enabling its interception and analysis. Additionally, these filters can protect friendly communication systems from jamming attempts by allowing only specific frequencies to pass through.
Let’s look at a real-world example of this application that uses microwave components. In May of 2023, the Air Force recently tested out a high-powered microwave counter drone weapon. It was called the Tactical High-power Operational Responder (THOR), and uses speed-of-light High-Power Microwave, or HPM pulses.

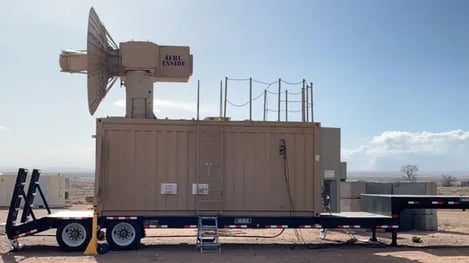

Image of THOR Drone - 2023
Source: U.S. Air Force Photo / Adrian Lucero
Application #3: Satellite Communication Systems
Military satellites are used for a variety of purposes, including reconnaissance, navigation, and secure communication. These satellites often need to receive and transmit signals on very specific frequencies to avoid interference from other satellites and ground-based sources.
Even NASA has advocated that new satellite communications should use RF and microwave parts and sensors. These satellites might use hyperspectral sensors, which “...involve slicing images into many different spectral bands to uncover details that otherwise might be hidden.”
In short, bandpass filters are used to ensure that satellites only receive and transmit signals within the desired frequency band. To avoid multipaction for satellites in space, custom bandpass filters are quality tested.
Application #4: Wireless Communication Systems
Similar to satellite systems, military radio communications also rely on specific frequency bands to relay messages without interference. Bandpass filtering allows these specific frequencies through while blocking out potential interference from other sources.
This not only enhances communication clarity, but also aids in maintaining secure lines of communication. This is a critical aspect in military operations.
Conclusion: Bandpass Filtering is Vital for Military Technology
In this examination of bandpass filters, we have touched on radar systems, electronic warfare, satellite communications, and military wireless communication systems. Each uniquely highlights the profound influence of these crucial RF components.
We have seen how bandpass filters stand as the guardians of frequency bands, whether in the dense cacophony of electronic warfare or space. The demand for such RF filters is growing as technology continues to evolve around the world.
We urge our fellow engineers to contemplate the increasingly intricate challenges that define our field. Bandpass filters are not just technical necessities, they are the embodiment of our continuous pursuit of precision. They are deeply interwoven with the fabric of our technological advancement.
What new heights could we reach if we dared to re-imagine their possibilities?
Need a custom bandpass filter? Learn how we make them in this article. There is a reason why our RF engineers have been called ‘kickass’ for over twenty-five years!
Our team will echo your passion for innovation, embrace your quest for the perfect component you need, and understand your unique challenges.
Q Microwave owns a classified facility and meets various cybersecurity requirements for bandpass filter design and creation. We are an approved United States-based vendor for any unique application design you have.
