What Does Bandpass Mean? Definition & Modern Applications

The term "bandpass filters" is commonly used in discussions around RF filters and microwave subsystems. But what exactly does "bandpass" mean?

The “bandpass” only allows the right frequencies to pass, ensuring clear and crisp communications. Typically, when engineers refer to "bandpass," it is followed by the word "filters," denoting the devices responsible for the selective frequency filtration.

We benefit from bandpass filters every day – in settings everyday users might not even realize! Take Wi-Fi, for instance. If you are connected to Wi-Fi right now, it's a bandpass filter working silently in the background, enhancing signal selectivity of your router and shielding it from surrounding noise.

In this article, we are going to dive deeper into what bandpass means, the designs of different filters, and recent, real-world applications of bandpass filters.

Defining “Bandpass”

As mentioned above, a "bandpass" refers to the range of frequencies transmitted through a bandpass filter. This concept is intrinsically linked to "bandwidth," which essentially represents the width of a band. This width is determined by the difference between the cut-off frequencies and dictates how much of the information that the filter can "pass through."

While invisible to the naked eye, our atmosphere is full of unwanted frequencies. To ensure the transmission of the correct signals — and by extension, the right messages — utilizing a bandpass filter is crucial.

These are the components that make up a "passband", i.e., the range of frequencies or wavelengths that can pass through a filter.

Center frequency: This is the midpoint of the passband where the filter's response is at its peak, allowing frequencies around it to pass with minimal attenuation.

Bandwidth: This is the range of frequencies that the filter allows to pass through it.

Q factor: This determines the severity of the cutoff between the passband and the stopband of a filter. A high-Q factor indicates a sharp cutoff and a low-Q factor has a more gradual transition.

Each bandpass filter is built with these elements to pinpoint the correct frequency. These elements are adjusted based on the purpose of the bandpass filter.

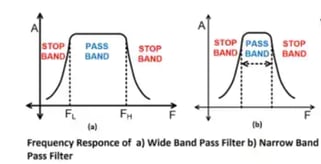

Source: Electrical 4 U

Bandpass Filters: Different Designs and Materials

Bandpass filters can be crafted from a variety of materials, each with its own set of pros and cons. Common materials include lumped element, combline, ceramic, microstrip, and waveguide, to name a few.

Your project's objectives dictate the material to use for your bandpass filter. When deciding, consider the needed frequency ranges, bandwidths, insertion loss, dimensions, cost, and power handling capabilities. Understanding the SWaP-C trade-offs among these materials is helpful when determining what you need for your specific project.

There are three main types of bandpass filter designs: Elliptic, Chebyshev, and Butterworth. You can dive into learning about their advantages and disadvantages in this article.

It’s important to recognize that each design and the materials that make up those designs are utilized for different purposes. If you understand the advantages and limitations of designs and materials, then selecting the right bandpass filter is easier.

Recent Real-World Applications of Bandpass Filters

Bandpass filters find critical applications across various real-world domains, including military operations, aerospace advancements, and communications technologies.

Military Uses

Bandpass filters are integral in military radar systems, as they isolate and eliminate unnecessary frequencies. This is critical in obtaining accurate data on a target's location, speed, and direction.

RF bandpass filters also play a pivotal role in aiding the military in the adoption of fifth-generation wireless technology, or 5G. One of the biggest applications of 5G is to help military equipment operate autonomously.

"One of the big [trends] is 5G for equipment that operates autonomously. The speed and low latency of 5G are a huge advantage for the military. They want to communicate and control without wires for instantaneous situational awareness. 5G also provides greater security and provides a replacement for dependency on radio."

- Times Microwave’s Slack

The strides made in both radar systems and 5G technologies underscore the pivotal role that bandpass filters hold in the ongoing advancement of military tech.

Aerospace Advancements

In the aerospace sector, major players like NASA emphasize the incorporation of RF and microwave components in new satellite communications systems. NASA uses Space-to-Ground RF to transfer data that is crucial to the success of satellite and spacecraft operations.

Broadband Communications

Bandpass filters are essential in broadband communications. They are used in equipment such as cable modems and set-top boxes. LC filters, in particular, separate signal channels, filtering out undesirable electronic signals and reducing interference.

The advancement of broadband communications, notably through 5G, is accelerating the sharing of information for both civilian and military use. New generations of millimeter-wave 5G communications solutions are being built with unprecedented speed, ultra-wide bandwidth, and low latency for broadband communication. These advancements facilitate an increase in shareable information, empowering real-time decision-making and quicker dissemination of knowledge.

Understanding Bandpass

In today's advanced technological systems, bandpass filters play an important role in ensuring we receive the correct communications and signals while filtering out unwanted noise. Grasping the concept of "bandpass" enriches our understanding of how these filters function and their applications in real life.

Though well-recognized in the engineering domain, there is a lot of information about bandpass filters that many people don’t know about. At Q Microwave, we are committed to constantly learning about RF technology to better support the needs of our customers.

Want to know more about how Q Microwave creates custom bandpass filters? Discover why our RF engineers have been called ‘kickass’ for over twenty-five years!
